Starter set molding duplicating mold making silicone rubber extra

Starter set molding duplicating mold making silicone rubber extra

SKU: TF5007

132,90 €

incl. 19% VAT ,plus , Free shipping to AT BE FR DE NL.

Choose tax zone / country of delivery

Not in stock, will be ordered for you
Shipping time **: 7-9 Days* (DE - int. shipments may differ)

Description
Question about item

Starter set molding duplicating mold making silicone rubber extra

Starter Kit for Mold Making with Silicone Rubber

Have you always wanted to make your own molds with silicone,
but aren't sure what you need or how to do it?

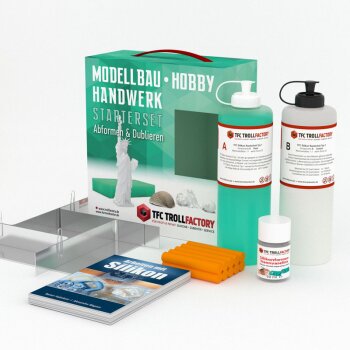

Here's the starter kit, containing everything you need to get started right away:

2 kg TFC Silicone Rubber Type 1 Molding Silicone, soft 1:1 NV
Aluminum mold making frame with base plate 20 x 20 cm
250 g Non-curing, sulfur-free modeling clay
50 ml TFC Petroleum Jelly for separating silicone from silicone for multi-part silicone molds
Textbook Working with Silicone with detailed instructions for mold making
1 kg TFC PU Casting Resin Model Resin 4 min beige 500 g + 500 g

TFC Silicone Rubber Type 1 Molding Silicone, soft 1:1 NV

Addition-curing 2-component silicone rubber that vulcanizes at room temperature (RTV).

You will receive the silicone in high-quality Plastic squeeze bottles with dosing caps.
This makes dispensing very easy and clean.
Precise dosing is effortless, as you would expect from comparable food packaging, for example, and represents a significant improvement over the usual tin cans or wide-mouth bottles.

Properties and Applications:

- Easy to use
- Trouble-free mixing of the components 1:1 by weight
- Excellent flowability, mixture is easy to pour
- Cures to form a durable, rubber-elastic vulcanizate without any reaction heat
- Short-term temperature resistance up to 150 degrees Celsius
- High tear strength and high flexibility
- Very high level of detail in reproduction
- Excellent non-stick effect for easy removal of models
- Uses, for example, in dental technology for duplicating and in model and mold making.

Further product information:

Color: green (component A) and white (component B)
Mixing: 1:1 by weight
Specific gravity: 1.1
Viscosity: 4000 ± 300 mPas
Mixing time at 23 degrees Celsius: 1 minute
Processing time (pot life) at 23 degrees Celsius: 6-8 minutes
Curing time at 23 degrees Celsius: 40 minutes
Shore A hardness after 24 hours: 18-20
Breaking load: 4.0 ± 0.2 N/mm²
Elongation at break: 380 ± 20%
Tensile strength: 20 ± 1 N/mm²
Reproduction accuracy: 2 microns
Dimensional change after 24 hours: 0.02%

Aluminum mold frame with base plate 20x20cm

Variable Aluminum mold making frame, consisting of:

4 aluminum angle plates, dimensions 100mm x 200mm x 50mm
1 aluminum base plate, dimensions 200mm x 200mm

The 4 angle plates can be variably adjusted against each other, allowing a variable casting box to be precisely adapted to the model to achieve the optimal shape, i.e., only the required amount of mold making/casting material is used.

Orange Plasticine, soft-wearing

Wax-based, soft-wearing modeling clay.
Easy to knead, does not stain, and does not smear.
Suitable for children ages 3 and up.

TFC Petroleum Jelly

Silicone mold release agent is applied thinly to the already cured silicone mold during mold making, and the newly mixed silicone for the second mold half is poured onto it. This prevents the two mold halves from sticking together. The release agent is free of harmful substances!

Book: Working with Silicone by Rainer Habekost, Alexandra Wagner

Silicone rubber is an extremely flexible material suitable for many applications.
This book primarily focuses on its potential applications in the hobby sector. The many different molding options are described in detail, some with illustrations.
To ensure that the practical hobbyist understands what material they are actually dealing with, a knowledge section precedes the practical section.
This section provides an overview of the various applications for the material and the different types of silicone rubber currently on the market.

TFC PU Casting Resin 4min

TFC PU Casting Resin 4min is a high-quality, virtually odorless two-component casting compound.
Suitable for molds, master models, figures, cores, negatives, control casts, sample parts, etc.

- Properties: low odor, temperature-resistant, high strength, excellent flowability.
- Application: The resin cures by adding the liquid hardener (component B).
- Mixing ratio: 1:1, measured by weight: One part resin (A) and one part hardener (B).
- Pot time at 25°C: 3-4 minutes.
- Demolding time: 20-30 minutes.
- Curing time: 1-1.5 hours.
- Processing temperature: 18-25°C.

Before processing, the resin component must be thoroughly homogenized.
During processing, ensure dry conditions and dry mold surfaces.
Porous mold surfaces (e.g., wood) must be thoroughly sealed.
