IWATA-Eclipse HP-BS Airbrush (0,35mm)-(ECL 2500) + Compressor AS 18-2 Starter-Set
  • Item number: PK-609540
275,00 €

including 19% VAT , no shipping costs to: AD AT BE CH CZ DE DK ES FR HR HU IT LI LU MC NL PL RO SE SI SK SM VA , shipping (Standard)

Our previous price: 327,28 €
(You save 15.97%, that is 52,28 €)

Choose tax zone / country of delivery

Short supply (2 In stock)

Shipping time **: 2-4 Days*

Shipping takes place Mo.-Fr. at 10 am


IWATA-Eclipse HP-BS Airbrush (0,35mm)-(ECL 2500) + Compressor AS 18-2 Starter-Set

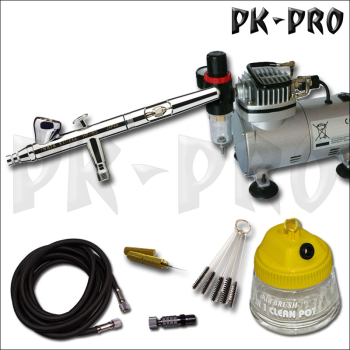

This airbrush starter set consists of:

1x IWATA-Eclipse HP-BS Airbrush (0.35mm) - (ECL 2500)
1x mini airbrush compressor Fengda AS-18-2 (FD-18-2)
1x PK-Airbrush-fabric hose-1.8m-2x1 / 8 "IG
1x quick coupling
1x nozzle cleaning needle
1x cleaning brushes (5 pieces)
1x airbrush cleaning container-V2

IWATA-Eclipse HP-BS Airbrush (0.35mm) - (ECL 2500)

These multi-purpose paint spray guns of the Eclipse series impress with their high paint flow and high spray accuracy and are also characterized by their self-centering plug-in nozzle system. They are particularly good for brushing premixed and thick colors. The paint spray guns of the Eclipse series can be used for all areas of application, surfaces and sizes. Thanks to its brilliant results in all areas, the IWATA Eclipse is a high quality all-purpose paint spray gun.

- Flow system
- Nozzle: 0.35 mm (self-centering plug-in nozzle)
- Type: double action
- Gravity cup content: 1.8 ml
- Solvent-resistant PTFE needle seal
- External needle lock access

Mini Compressor - Fengda AS-18-2 (FD-18-2)

Powerful, lightweight and portable airbrush compressor (without compressed air tank), for beginners and professionals! Very quiet, only approx. 47 dB. It works fully automatically and largely pulsation-free, is oil-free and therefore does not produce any contaminated air. Equipped with pressure reducer (including oil and water filter and manometer).

Low volume during operation, can also be used at home in the evening.

Thanks to its low weight, it is portable and suitable for home and hobby use (model making).

Can be used for airbrush guns with nozzles from 0.15 - 0.4 mm.

Scope of delivery:

1x compressor (without compressed air tank)
1x pressure reducer, with filter and manometer
1x power cable (Schuko)
1x instructions (English)

Area of ??application

Can be used for airbrush guns with nozzles from 0.15 - 0.4 mm.
This compressor is particularly suitable for use in the tabletop and model building hobby.
Suitable for painting individual miniatures, not for large models!

Further areas of application: Suitable for airbrushes and can be used in model making, handicrafts, ceramics, pottery, cosmetics, fingernails, helmets, technical images, tanning, tattoo, textile, nail art studios, tattoo, working with watercolors, body colors, hobbies, model toys , Fingernail design. It can also be used as an air source in medical applications, environmental protection, aquariums, the food and chemical industry, laboratories, etc.

Technical data:

- Adjustable working pressure: from 0 bar to 4 bar
- Printout: 20 - 23 L / min without load
- Pressure range of the pressure reducer: 0 - 7 bar (0-100 PSI)
- Automatic start from 3 BAR (43PSI)
- Automatic shutdown from 4 BAR (57PSI)
- Safety / drain valve
- Air connection thread (compressed air): G 1/8 "AG (9.51 mm)
- Thermal protection (protection against overheating)
- One-stage on / off switch
- Power cable length: 1.9m
- Voltage: 220-240 V / 50 Hz
- Power: 0.123 kW (1/6 HP)
- Speed: 1450/1700 r.p.m.
- Volume: 47 dB / 1m (very quiet)
- Weight: 3.3 kg (light and portable)
- Dimensions: 25.5 x 20.6 x 13.5 cm
- 4 non-slip rubber feet
- Certificates: CE, GS, ETL, CETL, ROHS
