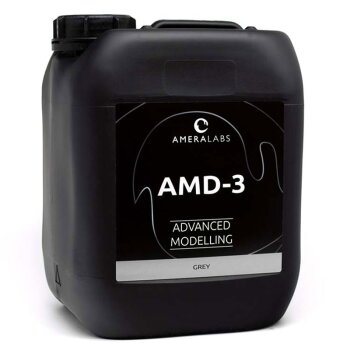

AMD-3 for printing Miniatures - grey color 5L can

AMD-3 for printing Miniatures - grey color 5L can

SKU: AL-AMD-3-GRP-500

only

262,40 €

52,48 € per 1 l

incl. 19% VAT ,plus , Free shipping to AD AT BE CZ DK FR DE HU IT LI LU MC NL PL SM SK SI ES SE CH GB VA.

Our previous price: 291,55 €

(Save 10%, i.e. 29,15 €)

Choose tax zone / country of delivery

Not in stock, will be ordered for you
Shipping time **: 10-12 Days* (DE - int. shipments may differ)

Dangerous goods. Shipping ONLY within the EU (+ Switzerland and Norway)! Air freight excluded - no shipping to islands possible!

Description
Question about item

AMD-3 for printing Miniatures - grey color 5L can

We have created AMD-3 material for modelling artists with one purpose in mind: to bring to life even the slightest expressions of your characters and miniatures. Finest features like hair and wrinkles are captured when printing with this 3D resin and allows you to materialize it just as you have envisioned it.

- Fast curing (probably the fastest curing material in the market)
- High resolution
- Paintable surface
- Low odor
- Dimensional accuracy and stability
- Compatible with most LCD resin 3D printers

Printing speed
AMD-3 is probably the FASTEST curing resin for LCD printers!
Designed to work even on low powered LED/LCD 3D printers equipped with LED light sources emitting 365-420nm UV light. Compatible with color and monochrome LCD 3D printers.
We have recommended 3D printing settings for many 3D printers here: AmeraLabs resin settings.

Accuracy
AMD-3 LED resin produces dimensionally accurate and stable prints. Due to its stiffness and a fair amount of hardness it can sustain straight edges and print out even the tiniest features. Supports do not bend during printing, keeping the model in place throughout the whole printing session and giving a higher rate of success with complex prints. It exhibits low shrinkage so the print will not deform during post-curing stage and will not crack over a long period of time.

Surface
Resin is available in two colors: black and grey. Carefully pigmented to get ideal color that expresses the most intricate details. Colour is almost fully opaque. Surface is glossy and hard (90 Shore D). After post-cure, print does not feel sticky or tacky and is pleasant to touch. It does not scratch very easily. It can be primed and painted with most popular paints. Due to its hardness, material’s surface can be polished to remove any layer lines, support marks or other imperfections. This allows using this material for printing masters for applications where smooth surface is needed.

Moisture and chemical resistance
Water absorption is less than 0.2%. This means, that your models will not deform due to moisture or exposure to IPA. It is even resistant to some acids.

Printing tips
For a successful print, we recommend:
- Level your build plate.
- If it’s your first print with this resin, print something small first. We recommend this calibration model.
- Find initial printing settings here: AmeraLabs resin settings.
- Use support column thickness of 1.5-2mm, support tip thickness of 0.2-0.6mm.
- Use attachment layer.
- Hollow your models.
- Use slower lift speeds. 5mm/min for bottom layers, 40-60mm/min for normal layers.
- Let us know if you have any trouble. We are here to help: Facebook messenger, support@ameralabs.com

Cleaning procedure
Viscosity of this material is relatively low - around 180-200cps - so cleaning is quite easy.
If you do not have ultrasonic cleaner or prefer cleaning with ordinary IPA baths, here is our 4 easy steps cleaning procedure:

- After taking your printed object off the build plate leave it submerged in the IPA bath for 2 minutes.
- Swirl the IPA bath with printed part in it actively for another 2 minutes.
- After swirling, leave it still, but fully submerged for another 2 minutes.
- Finally, swirl the bath actively again for 2 minutes.

Evaluate cleaning results and repeat this procedure only once (if needed) with clean IPA.
If you prefer cleaning with ultrasonic cleaner, we recommend to put a printed part into the container with IPA, close it well and put
the container into the ultrasonic cleaner filled with water. Leave it for no more than 10 minutes. No additional heating is necessary.
If you use Wash and Cure station, leave the printed object submerged in IPA for 6 minutes. Depending on the results, you can repeat this step again and leave for additional 6 minutes.

Post-curing procedure
It is easier to remove supports before post-curing. However, you can also post-cure a print with supports and remove them later. Depending on the model this can help to obtain better geometries if you have such goal. Post-curing time depends on your curing station, it can vary from 5 minutes to 1 hour (until the surface of your 3D print becomes non-sticky). You should post-cure immediately after cleaning and drying. After proper post-curing surface of AMD-3 printed objects should be completely non-sticky and very hard to scratch.

Mechanical properties
- Tensile Strength at Break: 55MPa (ISO-527, post-cured)
- Elongation at Break: 6% (ISO-527, post-cured)
- Viscosity: 180-200 cPs (at 25°C)
- Hardness: 80-90 Shore D (ISO 868)
- Shrinkage: less than 1%
- Compatible UV Wavelength: 365 - 420 nm
